HOW TO MAKE A LED LIGHT FROM DAMAGED MOBILE PHONE DISPLAY

How to make a led light from damaged mobile phone display.

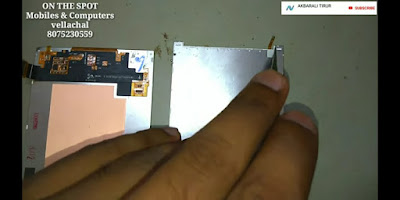

 We have all seen the display of the mobile phone.We can see everything in the display with the help of the led light.We can build light from these displays if the light is not damaged or damaged.In the photo below you can see two displays.There is a large strip on one display and a small strip on the other display.Here I have removed a large strip of display.

Here I have removed a large strip of display.We don’t need a big strip.Here is a small strip used for lighting.This strip is solder on the large strip.We need to separate it.You can use a soldering iron for this purpose.You can see it disassembled in the photo below.

When it is disassembled, the connections in it cannot be damaged.Now two wires from this little strip should be jointed.Pair it as much as you like.In the photo below you can see how the joints work.


Now we have to remove the top glass of the display.For this you can use a small blade or something.Only the part of the glass that is to be removed.Do not damage the other parts while doing this.The photo below shows how to do this.

Now we need a charger that gets a fifteen volt output.Fifteen volts is a must for light work.Light does not work if it is lowered at 14 volts.Similarly the volt should not increase.Now join the positive side of the charger on the positive side and negative part of the charger on the negative side.Optionally, you can fix a switch .Now you can use this light wherever you want.You can see this light work in the photo below.
I think this will help you a lot.
